Large Veneer Drying Capacity Roller Veneer Dryer Machine

Large Veneer Drying Capacity Roller Veneer Dryer Machine

The 4-deck veneer roller dryer machine has a wood veneer drying capacity of around 10cbm per hour. All the fans of heating air and cooling air are axial flow fans, and the power of the motors of the axial flow fans is 4KW which saves up to 40% of the electric consumption of the whole wood veneer dryer compared to the previous 11kw motor power. At the same time, the air flow to the face and back of the veneer is sufficient inside the wood veneer drying machine. The core veneer dryer is heated with a thermic oil heater, and the plywood hot press dryer can be heated with the thermal oil boiler too.

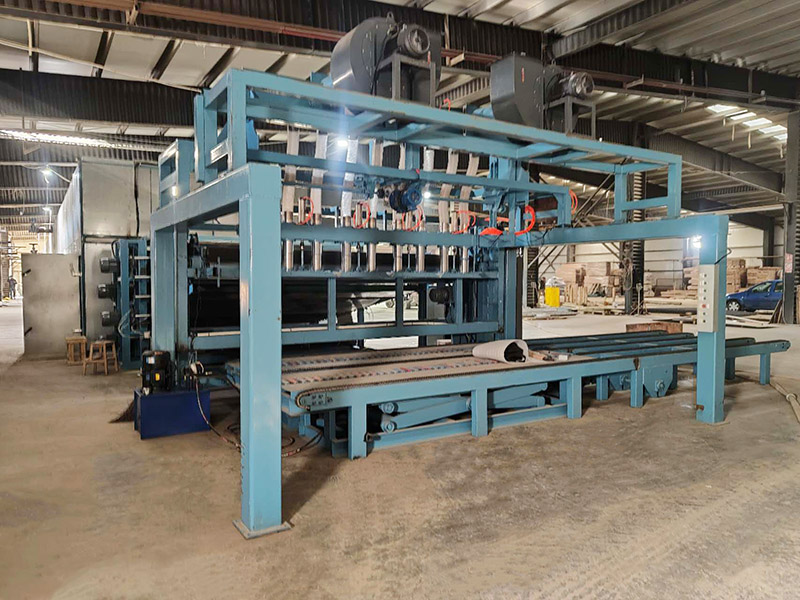

There are automatic veneer infeeder and veneer outfeeder installed for the 4-deck roller dryer machine. Only one worker is needed for the wood veneer in the feeding section. In this way, fewer workers are needed and the labor cost is reduced to the greatest extent.

The veneer collection section uses the semi-automatic veneer out feeder to release the workforce of workers in collecting the veneer.

Heat exchangers or Radiators, as well as hot air blowers, can be installed at the top of the core veneer dryer or the bottom of the 4-deck roller dryer machine according to the specific requirement of the customer and actual situation.

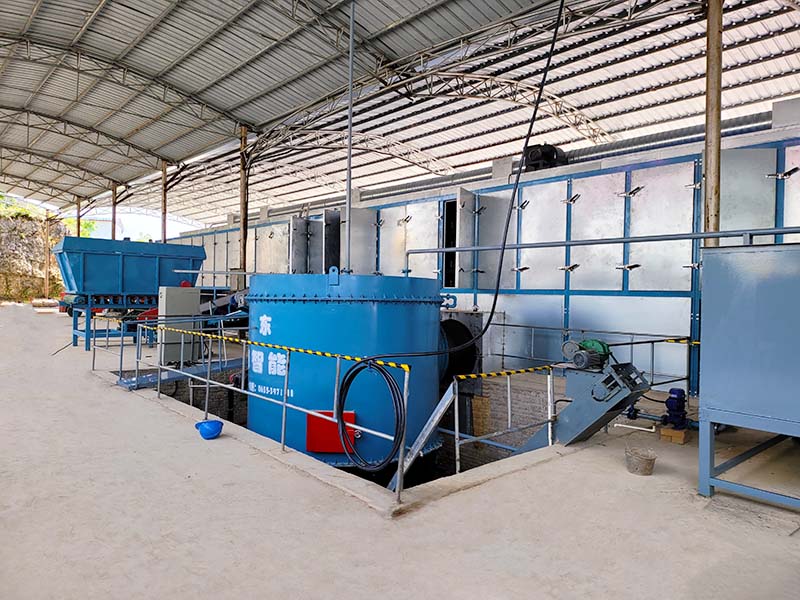

Biomass burner, a product independently developed by Shine Machinery, can directly use crushed wood waste, tree barks as fuel to provide a heat source for the dryer, which is energy-saving and environmentally friendly, and greatly reduces the drying cost.It is a new burner when talking about the heat source of the veneer dryer machine. The biomass burner has no pressure and is not a vessel/container. This is the big difference between a steam boiler and a thermic oil heater. Roller Veneer Dryer running without Thermic Oil Heater or Steam Boiler. It uses waste wood/tree bark fired Air Heater. It eliminates heat loss by directly heating air and supplying it to the dryer instead of indirect heating with Oil or water.

Features and Advantages of Shine Roller Veneer Dryer

1. The veneer after drying has uniform moisture content, and it is flat without buckling or end waviness. Also, the veneer after drying is free of splits, and the surface is in good condition for gluing.

 2. Shine veneer dryer adopts automatic electric control and frequency conversion system, which can adjust the transmission speed and temperature automatically according to different veneer thickness and moisture content to achieve an ideal drying effect. Equipped with automatic veneer feeder and an automatic collection system, which not only improves the drying efficiency but also saves labor costs.

 3. Shine veneer dryer’s patented moisture exhaust system is specially designed for users in cold northern regions. It can be installed separately on any of our dryer models. The system is installed on the top of the Shine’s veneer dryer to quickly discharge the moisture inside the dryer to the outside of the workshop, avoiding the pre-condensation of steam caused by the temperature difference between the inside and outside of the dryer, and keeping the inside of the dryer dry and pressure balanced.

 4. The hot air fan and the cold air fan of the dryer use the latest axial flow fan, which reduces the power consumption and greatly reduces the power of 35% of the whole machine, which can further reduce the user's later operation cost. The hot air blower adopts an axial flow fan with a power of 4KW and 5.5KW, and the air volume can reach 46000-60000m³/h. It not only fully guarantees the required air volume for drying, but also reduces the total installed power, thus minimizing the electricity consumption of the entire equipment.

 5. Less maintenance is required for the Shine veneer dryer, and no veneer jamming leads to less downtime.

 6. The biomass burner is the exclusive patent invented by Shine Machinery in China. It can burn all kinds of waste wood directly to reduce the fuel cost greatly. It has the advantages of high efficiency, low fuel consumption, and energy saving. Compared to a steam boiler or heat conduction oil

7. We have a professional R&D team that can design different models according to the customer’s special requirements. Also, a perfect after-sales service system, which can supply 24h online service; remote operation is available on request, regular customer visits, and sufficient spare parts supply in time.

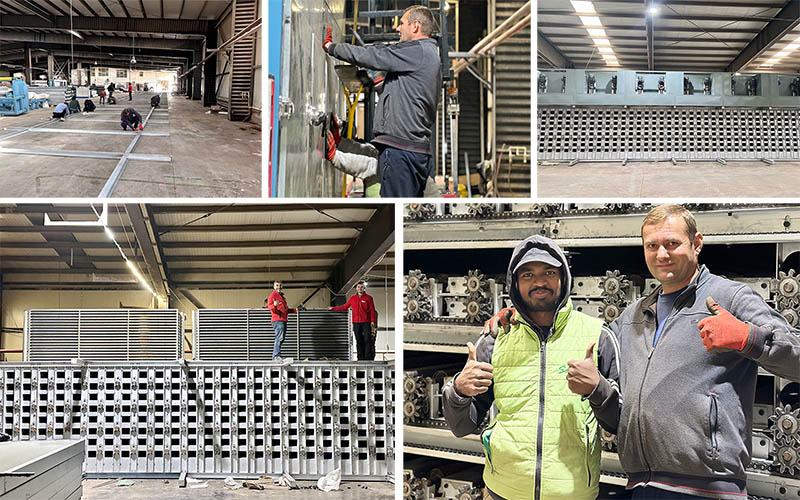

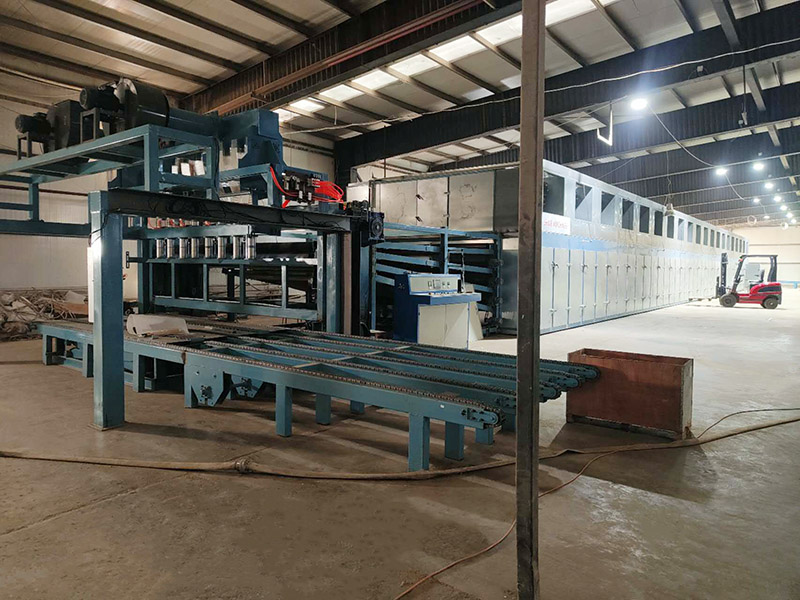

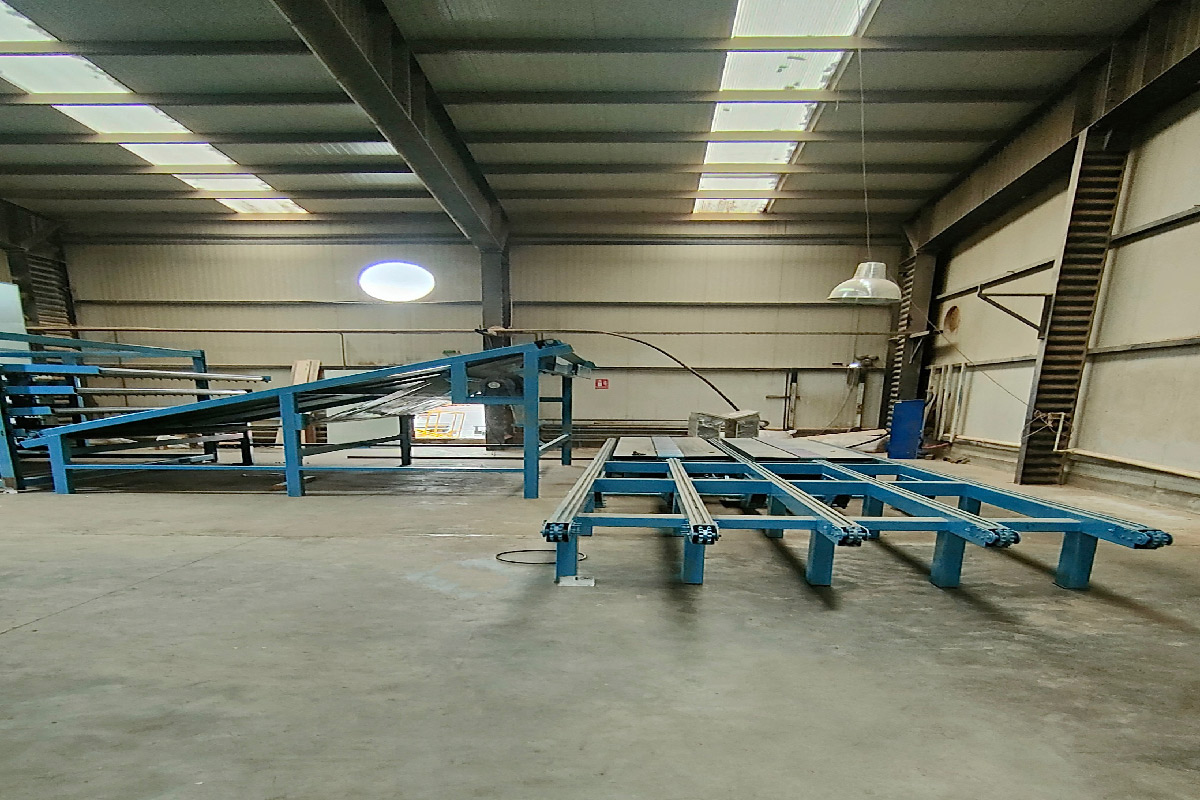

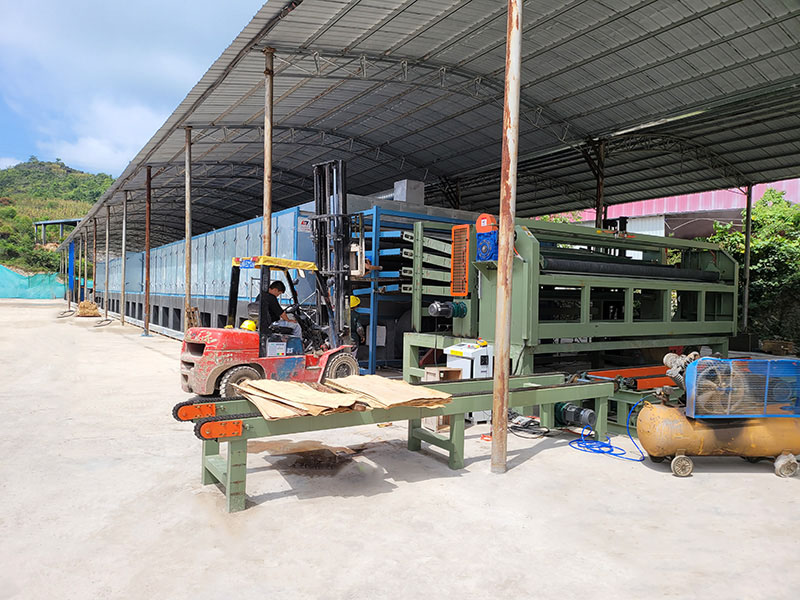

Here are some installation pictures of the veneer dryer for your reference.

And there are some photos taken when stuffing veneer dryer components, biomass burner.
