Log Debarker Machine

Eucalyptus, miscellaneous wood, hardwood, all-in-one rotary cutting machine, developed and designed for hardwood, the board is evenly produced and the surface of the board is smooth.

High speed, stable machine operation, convenient operation and high production efficiency.

Type:Log Debarker Machine

Round log diameter (mm): maximum 600mm-wooden core 80mm

Host line speed (m/min): 50m

Cutter length (mm): 1500X130X12.7mm


  Contact Now
Product Details

This log debarker machine is the main equipment to remove the veneer of the plywood production line. It is suitable for eucalyptus, pine,poplar and birch, etc. According to the principle of peeling, the skin of the log is removed and the log is straightened. The hydraulically driven feeding mechanism can quickly and effectively put in the logs, remove the bark, and make them round, save labor.

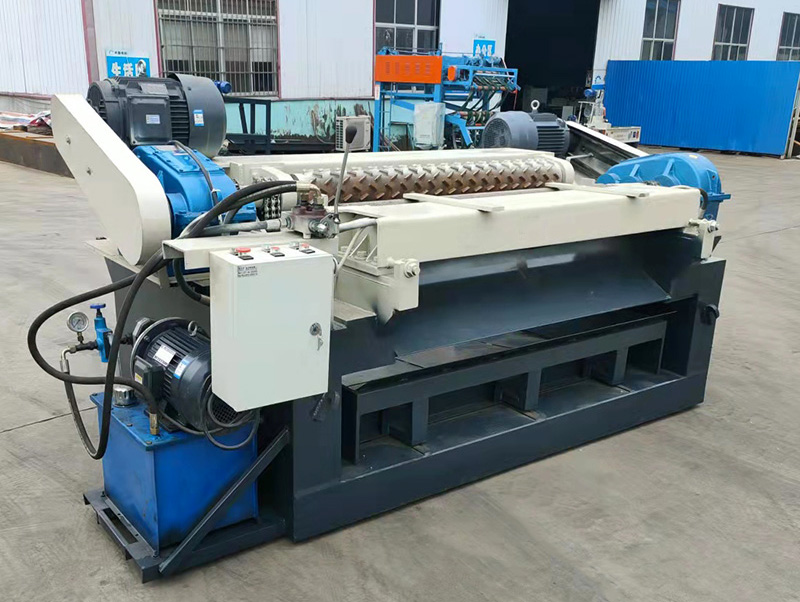

Log Debarker.jpg


Feature of Log Debarker Machine


1. The double roller comes forward and backward. It is convenient for wood unloading and wood unloading, which can improve the speed of bark removing work.

2. Adopting hydraulic feeding system, the pressure can be adjusted to suit different density of wood.

3. The machine's working width and opening stroke can be customized according to client's requirement.

4. Reasonable machine design, machine runs stably, easy operation.

5. High production efficiency. Enlarged double roller and single roller. Double power improve its peeling speed, both for the hard wood and soft wood.

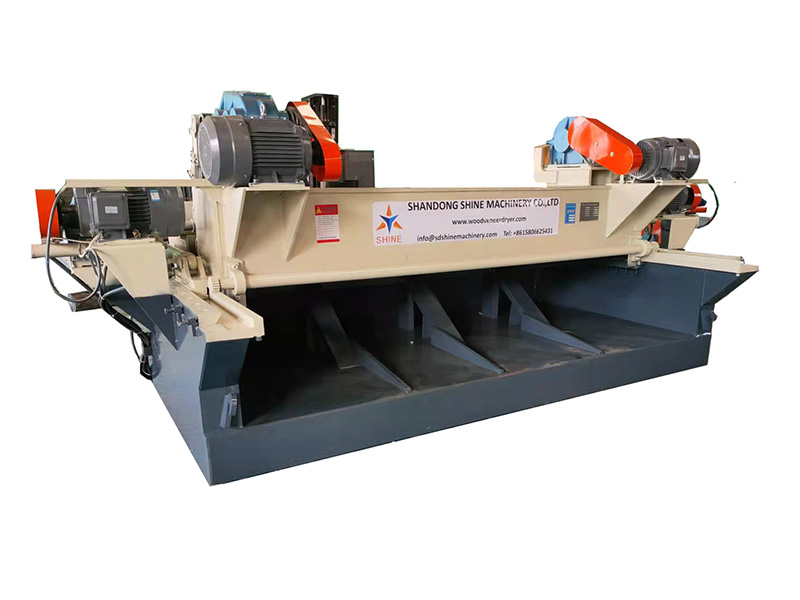

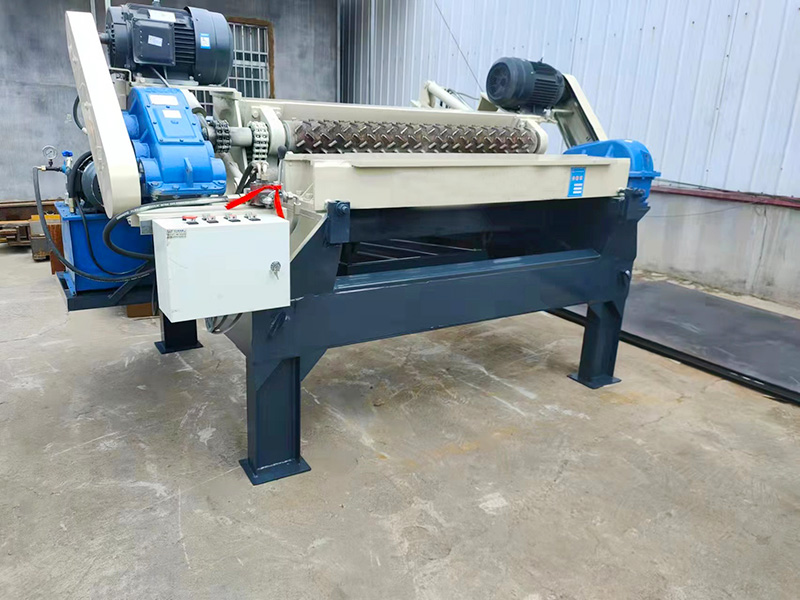

Log Debarker.jpg


Product Parameters of Log Debarker Machine



Type

Log Debarker Machine

Round log length (mm)

1300mm

Round log diameter (mm)

 maximum 600mm-wooden core 80mm

Find circle thickness range (mm)

1mm-4.0mm

Host line speed (m/min)

50m

Cutter length (mm)

1500X130X12.7mm

Main and auxiliary motor power (KW)

Double roller motor 11KW

Single roller motor 11KW

Oil pump motor 5.5KW

Double roller roller (mm)

180mm mace

Single roller (mm)

150mm large twill

Total weight (KG)

3200

Dimensions (mm)

3500*2100*1300


Exhibition and Customer Visiting




Customer Visiting.jpg

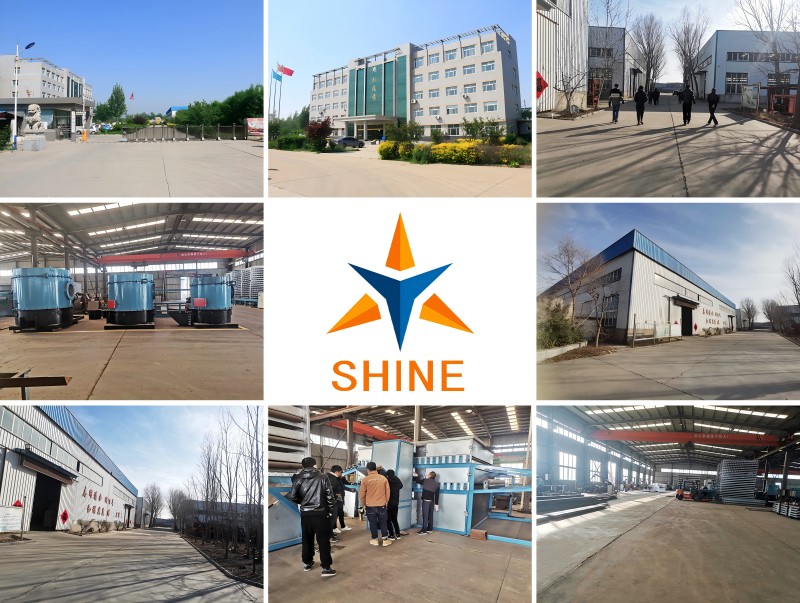

The Factory


The Factory.jpg


Our Services


Pre-sale services:

1) Provide the free consultation of all plywood production line

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory.


Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment.

3) Train the first-line operator.


After sale services:

1) 24 hours online service.

2) Provide the VIDEO with Install and debug the equipment.

3) Provide technical exchanging(Technical phone:+8615806625431)Door to door service is possible.
