4ft Log Debarking Machine

High-speed servo rotary cutting all-in-one machine, high speed, daily output can replace the working efficiency of three machines, saving resources and labor for upper equipment. peeling the net high, high productivity, little injury for the wood.

  Contact Now
Product Details

The machine can peel wood,also known as wood peeling machine, belonging to one of wood working machinery products. Debarking machine is divided into 4ft normal model debarking machine, 4ft heavy duty updated debarking machine and hydraulic debarking machine.

It is suitable for eucalyptus, pine,poplar and birch, etc. According to the principle of peeling, the skin of the log is removed and the log is straightened. The hydraulically driven feeding mechanism can quickly and effectively put in the logs, remove the bark, and make them round.

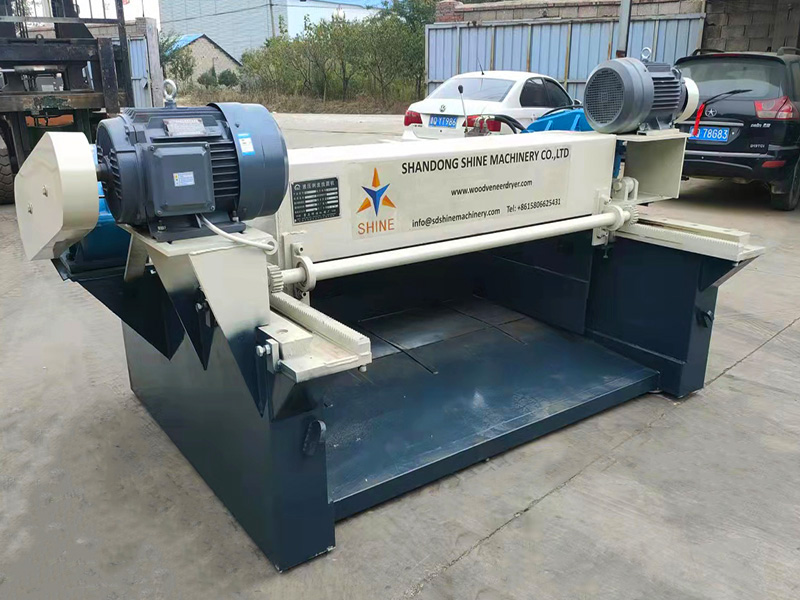

Log Debarking Machine.jpg


Features of 4ft Log Debarking Machine


1.The double roller comes forward and backward.  It is convenient for wood uploading and wood unloading, which improve the speed of bark removing work.

2.Reasonable machine design, machine runs stably, easy operation.

3.Adopting hydraulic feeding system, the pressure can be adjusted into suit different density of wood.

4.The machine's working width and opening stroke can be customized according to client's requirement.

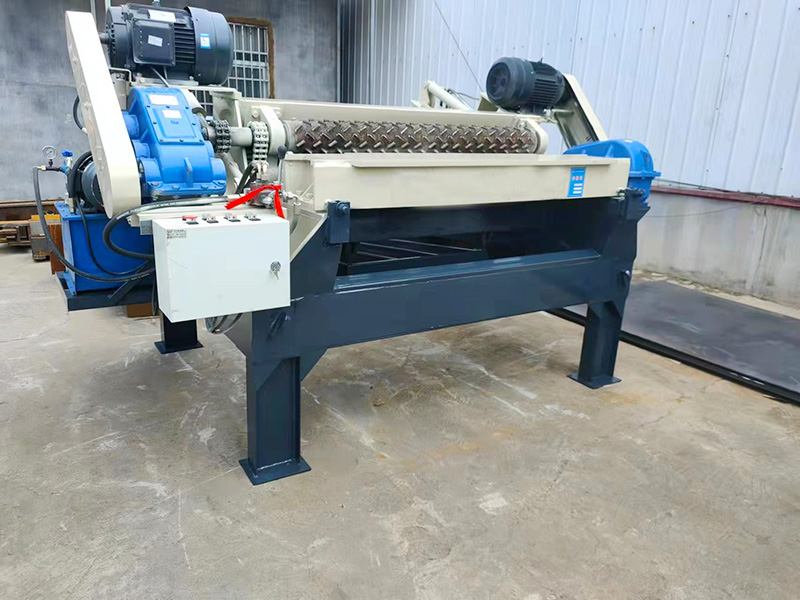

Log Debarking Machine.jpg


Product Parameters of Log Debarking Machine


Type

Log Debarker Machine

Round log length (mm)

1300mm

Round log diameter (mm)

 maximum 600mm-wooden core 80mm

Find circle thickness range (mm)

1mm-4.0mm

Host line speed (m/min)

50m

Cutter length (mm)

1500X130X12.7mm

Main and auxiliary motor power (KW)

Double roller motor 11KW

Single roller motor 11KW

Oil pump motor 5.5KW

Double roller roller (mm)

180mm mace

Single roller (mm)

150mm large twill

Total weight (KG)

3200

Dimensions (mm)

3500*2100*1300


Exhibition and Customer Visiting



Customer Visiting.jpg


The Factory

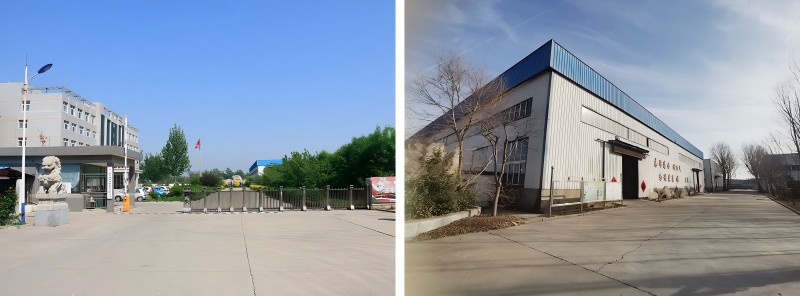

The Factory.jpg


Our Services


Pre-sale services:

1) Provide the free consultation of all plywood production line

2) According to the clients' special requirement, offering the reasonable plan and free design to help to select the equipment.

3) Welcome to visit our factory.


Services during the sales:

1) Inspect the machine before leaving the factory.

2) Oversea install and debug the equipment.

3) Train the first-line operator.


After sale services:

1) 24 hours online service.

2) Provide the VIDEO with Install and debug the equipment.

3) Provide technical exchanging(Technical phone:+8615806625431)Door to door service is possible.
