Small Vertical Veneer Dryer

The small vertical veneer dryer is an efficient, energy-saving and environmentally friendly wood drying equipment, specially designed for the wood processing industry and wood product manufacturing industry. It dries wood quickly and evenly to the required moisture level, thereby improving wood quality and reducing production costs. Easy to operate, users can easily adjust drying parameters to meet the requirements of different woods.

Contact Now

Product Details

Shine economical vertical veneer dryer adopts the principle of two-way conveying. The material is evenly distributed on the grid plate and runs smoothly to the end of the dryer. After the material is dried, it can be sent out automatically. The heat source adopts the built-in combustion furnace process, which can burn the waste wood handles cut by the veneer peeling machine , saving raw material costs, The temperature in the drying area is 100-130°C, which can be adjusted according to demand.

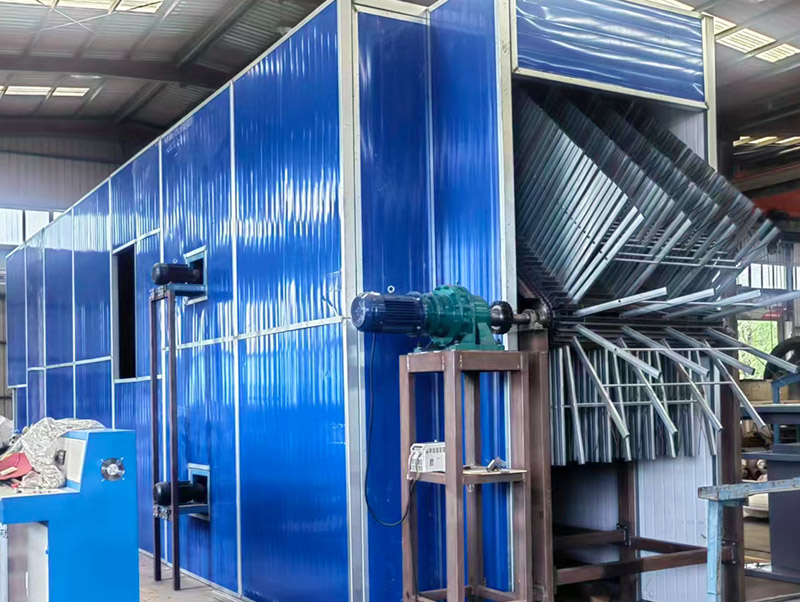

Vertical Veneer Dryer.jpg

The Shine vertical veneer dryer has a high space utilization rate, and the materials are constantly turned with the flap during drying to ensure the consistency of product quality. The unique air distribution device makes the hot air distribution more in line with the needs of the material drying process.

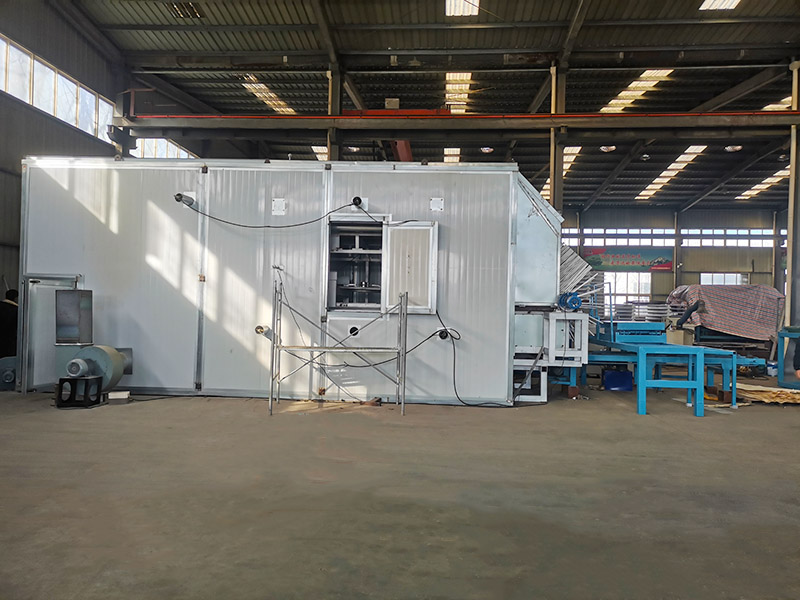

Vertical Veneer Dryer.jpg

Whether you are a large-scale production enterprise or a small production workshop, Shine small vertical veneer dryer can provide you with high-quality drying solutions to help you achieve efficient production and improve product quality.

Vertical Veneer Dryer.jpg

Product Parameters of Vertical Veneer Dryer

Model	FBH30-20
Moisture Content（%）	Fresh veneer to within 20%
Capacity(m³/H)	1.2-1.5
Overall Size (LengthWidthHeight)	20 X 7 X 4
Hot Air Blower（KW）	1.5kw X 6set=9KW
Traction Motor（KW）	4KW
Intake Air Blower（KW）	7.5KW
Internal Burner Blower （KW）	1.1KW
Oil Station Power	2.2KW
Water Pump Power (Water Film Dust Removal)	2.2KW
Chain Conveyor	2.2KW
Infeed Conveyor Belt	2.2KW
Side Entry Feeding	2.2KW
Veneer Collecting	2.2KW
Cooling Blower (Above burner)	0.75kw*2set=1.5KW
Total Power（KW）	36.3KW

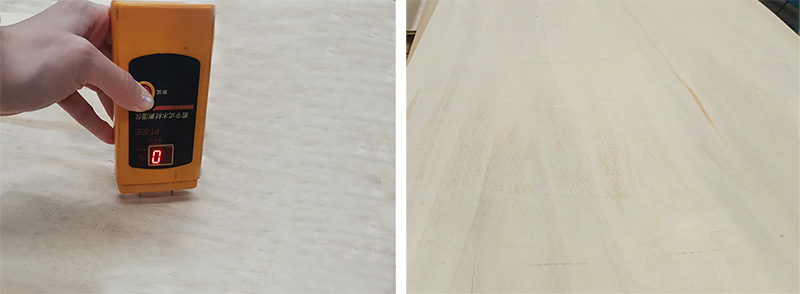

Customer Case

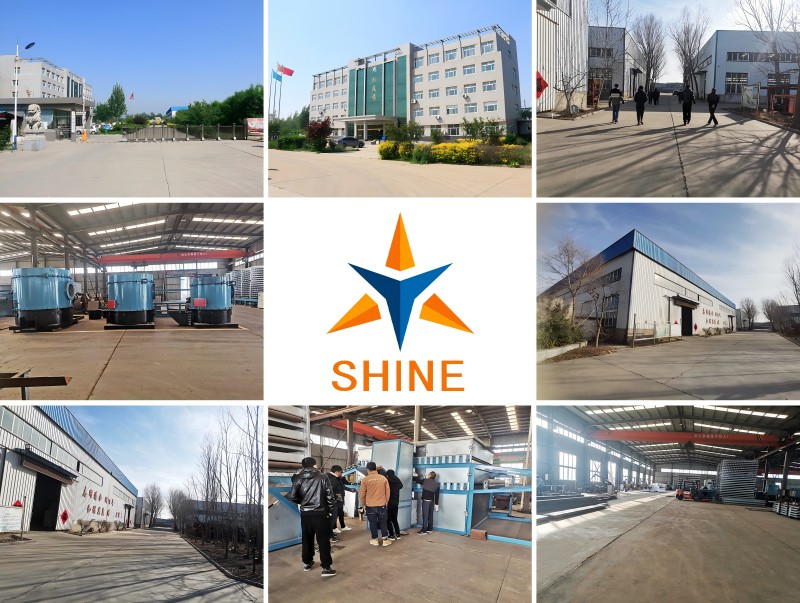

The Factory
