Plywood Log Debarker Machine

This machine can be equipped with log conveyor and log core conveyor machine,full automatic,save labor and improves working efficiency. High precision circle guide rail special material and big diameter.Can ensure the machine working stable when wood diameter is big or material is hard. The gear and rack are treated by heating process, increase hardness and reduce abrasion, this part is used to ensure the feeding part run in same line, the structure won't bend. Add motor power, can supply enough power for big log and hard log.

Contact Now

Product Details

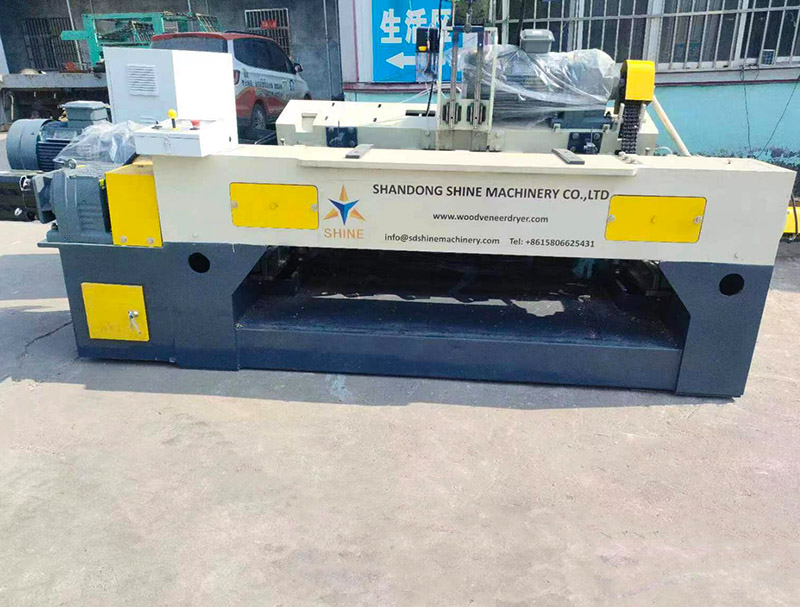

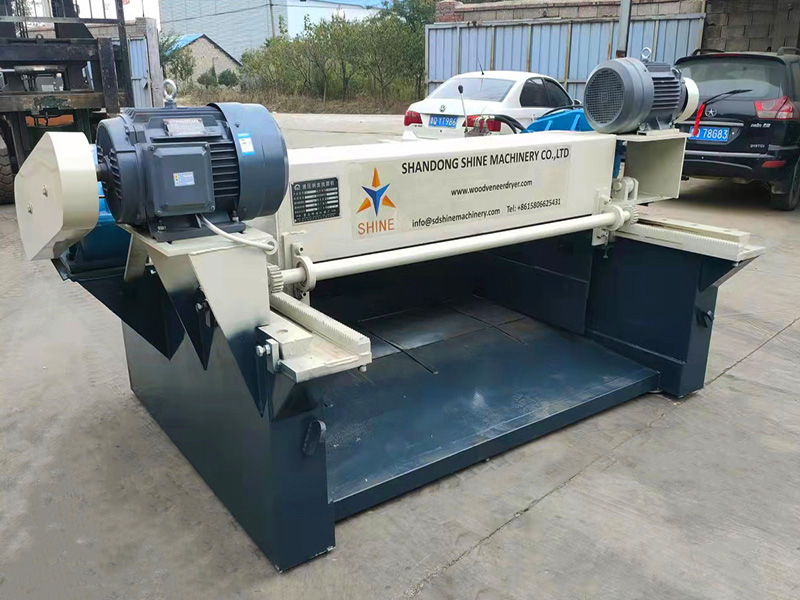

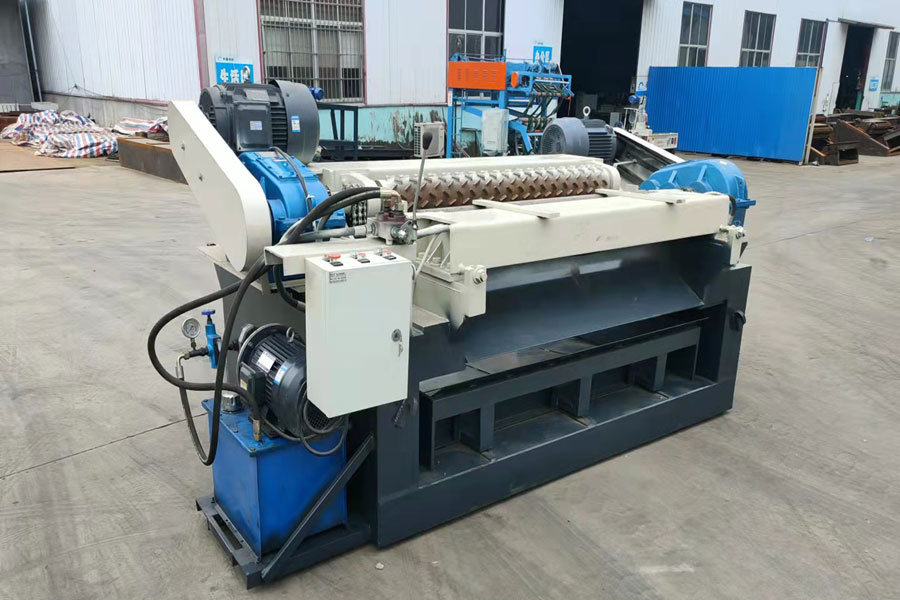

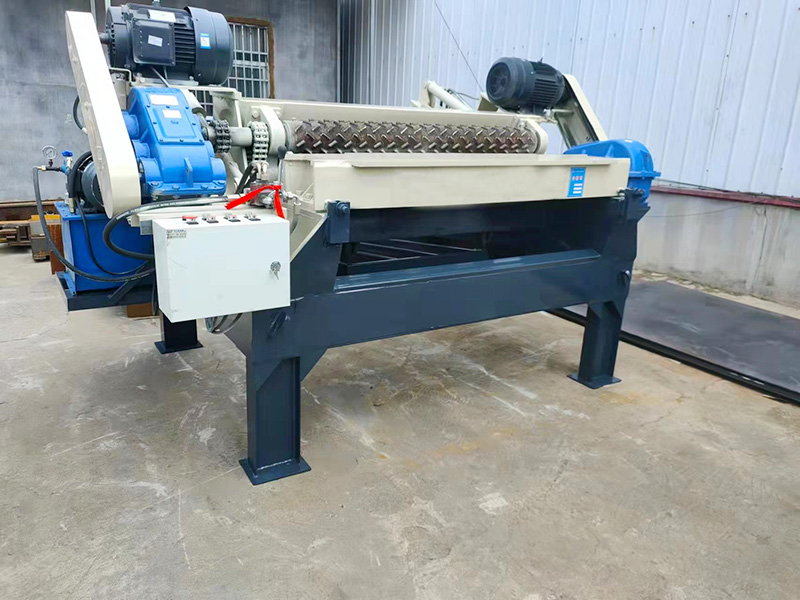

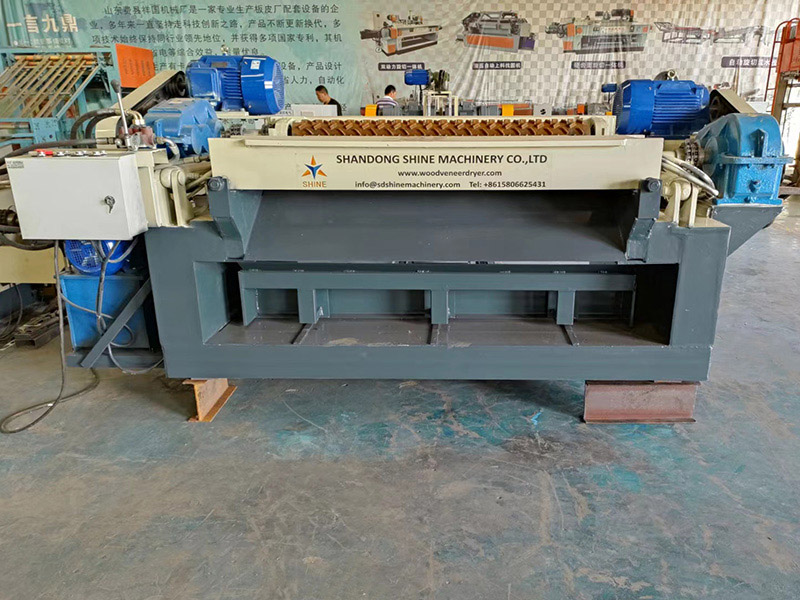

Plywood log debarker machine is an essential machine in plywood product projects. The purpose is to remove the bark from the tree logs and make log core round. Usually the max. working width is 8 ft, 6 ft, and 4 ft. With three sets of rollers, (double rows rollers + single row roller). the complete log debarking machine is made of three parts, log feeder, waste conveyor, and log debarker. We could design the log feeder according to the buyer's request.

Log Debarker Machine .jpg

Main Features of Plywood Log Debarker Machine

1. Double roller drive ensure good stability and high uniformity peeler.

2. linear guide rail ensure the veneer is more smooth and uniform.

3. T10 reducer-low vibration, smooth and steady transmission, low noise.

4. Hydraulic knife holder saving manpower, simple operation and automation.

5. Automatic adjust knife sewing--double convex rail design structure, more accurate, faster and more stable than original single convex rail adjustment, and no manual screw adjustment workers, saving manpower.

Log Debarker Machine .jpg

Main Technical Specifications of Plywood Log Debarker Machine

Model	Shine 1400 mm
Log dimension processing	500 *1400 mm
Rotary knife specification	1500 * 180 *16 mm
Diameter of rollers	150 mm
Linear speed	50m/min
Reference output	30 m³/ day
Hydraulic system power	7.5 kW
Driving roller power	5.5 kW * 2 or 7.5 kW * 2
Pressure roller power	5.5 kW * 2 or 7.5 kW * 2
Feeding cylinder diameter	80 mm * 2
Product dimension	4000 * 2200 * 1800 mm
Weight	4000 kgs

Exhibition and Customer Visiting

Customer Visiting.jpg

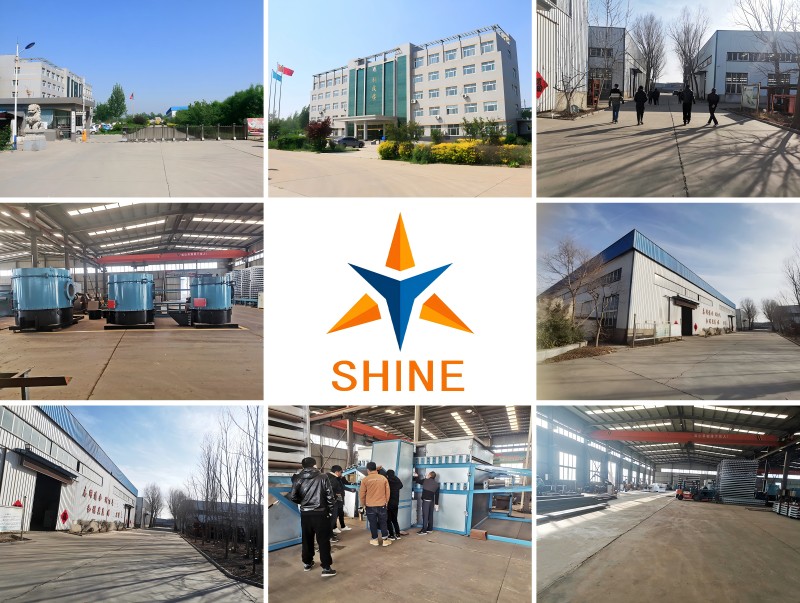

The Factory
